MAGTRON current sensor is based on open and closed loop hall/flux gate technology and is suitable for AC and DC, pulse, and any irregular measurements under isolation conditions. The primary side is completely isolated from the secondary side during the measurement.
High reliability
Low insertion loss
Strong anti-interference ability
Rapid response
Easy to install
High precision
High linearity
Low zero drift
Low temperature drift
Rapid response
High bandwidth
Photovoltaic application
Energy storage application
New energy vehicles
Industrial equipment
Rail transit
Series | Model | Package style | Rated current [A] |
Maximum range [A] |
Supply voltage (V) |
Frequency bandwidth | Operating temperature [℃] |
linearity (25℃) |
accuracy% (25℃) |
Application scenario |

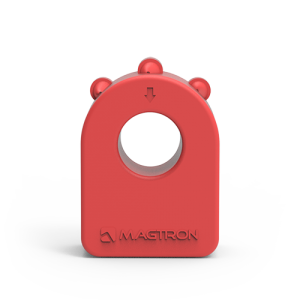

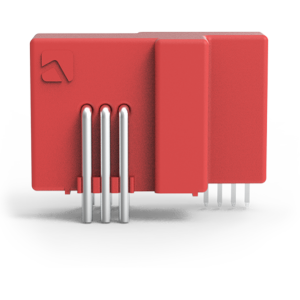

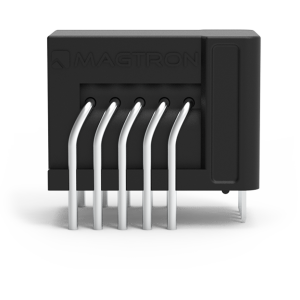

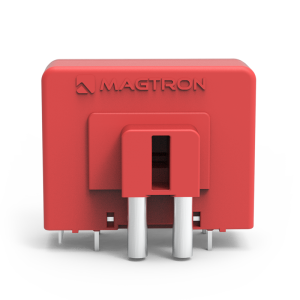

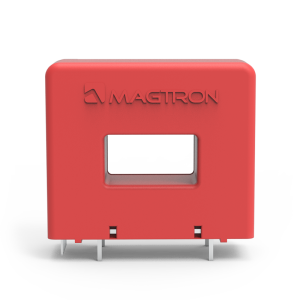

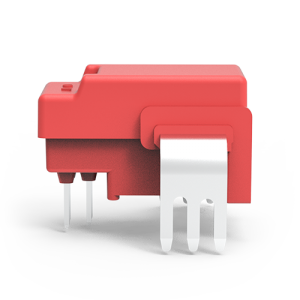

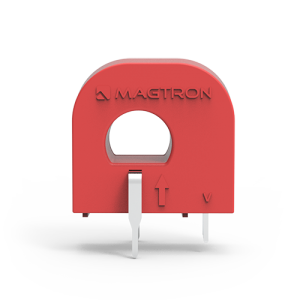

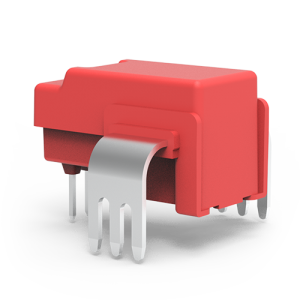

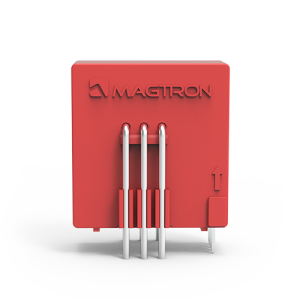

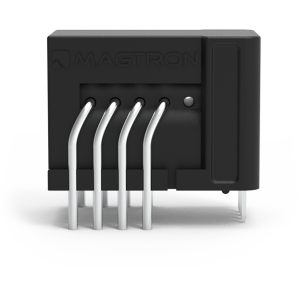

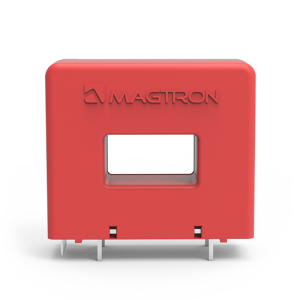

---|---|---|---|---|---|---|---|---|---|---|
Flux Gate Current Sensor | MCSA-6S/P | 6A | 20A | +5V | 200kHz | -40~+105 | 0.1% | 0.7% | Photovoltaic inverter/industrial equipment | |
MCSA-25S/P | 25A | 85A | +5V | 200kHz | -40~+105 | 0.1% | 0.7% | Photovoltaic inverter/industrial equipment | ||
MCSA-50S/P | 50A | 150A | +5V | 200kHz | -40~+105 | 0.1% | 0.7% | Photovoltaic inverter/industrial equipment | ||
MCSB-100S/P | 100A | 200A | +5V | 100kHz | -40~+85 | 0.1% | 0.7% | Photovoltaic inverter/industrial equipment | ||
MCSC-200S/NP-D | 200A | 370A | +5V | 100kHz | -40~+85 | 0.1% | 0.5% | Photovoltaic inverter/industrial equipment | ||
MCSC-200S/P | 200A | 450A | +5V | 200kHz | -40~+85 | 0.1% | 0.7% | Photovoltaic inverter/industrial equipment | ||
MCSE-75S/P3 | 75A | 180A | +5V | 300kHz | -40~+105 | 0.1% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSE-50S/P2 | 50A | 150A | +5V | 300kHz | -40~+105 | 0.1% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSE-25S/P1 | 25A | 85A | +5V | 300kHz | -40~+105 | 0.1% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSE-25S/P2 | 25A | 85A | +5V | 300kHz | -40~+105 | 0.1% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSE-50S/P1 | 50A | 150A | +5V | 300kHz | -40~+105 | 0.1% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-200S/NP | 200A | 450A | +5V | 200kHz | -40~+85 | 0.1% | 0.7% | Photovoltaic inverter/industrial equipment |
Series | Model | Package style | Rated current [A] |
Maximum range [A] |
Supply voltage (V) |
Frequency bandwidth | Operating temperature [℃] |
linearity (25℃) |
accuracy% (25℃) |
Application scenario |

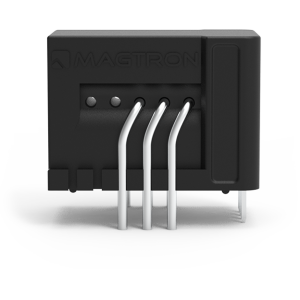

---|---|---|---|---|---|---|---|---|---|---|
Hall Closed Loop Current Sensor | MCSC-100 S/NP-H | 100A | 300A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | |
MCSC-150 S/NP-H | 150A | 450A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-200 S/NP-H | 200A | 600A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-250 S/NP-H | 250A | 600A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-300 S/NP-H | 300A | 600A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-100 S/P-H | 100A | 300A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-150 S/P-H | 150A | 450A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-200 S/P-H | 200A | 450A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-250 S/P-H | 250A | 450A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment | ||
MCSC-300 S/P-H | 300A | 450A | +5V | 200KHz | -40~+85 | 0.2% | 0.8% | Photovoltaic inverter/industrial equipment |
Series | Model | Package style | Rated current [A] |
Maximum range [A] |
Supply voltage (V) |
Frequency bandwidth | Operating temperature [℃] |
linearity (25℃) |
accuracy% (25℃) |
Application scenario |

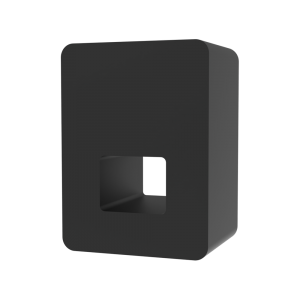

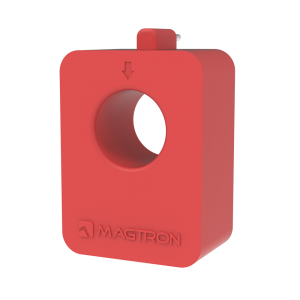

---|---|---|---|---|---|---|---|---|---|---|
Hall Open Loop Current Sensor | MG10RAG | 10A | 25A | +5V | 200kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | |
MG16RAG | 16A | 40A | +5V | 200kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | ||
MG20RAG | 20A | 50A | +5V | 200kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | ||
MG32RAG | 32A | 80A | +5V | 200kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | ||
MG50RAG | 50A | 125A | +5V | 200kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | ||
MG80RAG | 80A | 200A | +5V | 150kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | ||
MG100RAG | 100A | 250A | +5V | 150kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | ||
MG120RAG | 120A | 300A | +5V | 150kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | ||
MG150RAG | 150A | 375A | +5V | 150kHz | -40~+105 | 0.5% | 1% | Combiner box/inverter | ||
MG180RAG | 180A | 450A | +5V | 150kHz | -40~+105 | 0.5% | 1.5% | Combiner box/inverter | ||
MC20 | 10A | 20A | +5V | 80kHz | -40~+85 | 0.4% | 1% | Combiner box/industrial equipment | ||
MC25 | 12.5A | 25A | +5V | 80kHz | -40~+85 | 0.4% | 1% | Combiner box/industrial equipment | ||
MC45 | 22.5A | 45A | +5V | 80kHz | -40~+85 | 0.4% | 1% | Combiner box/industrial equipment | ||
ME2-20 | 10A | 20A | +5V | 80kHz | -40~+85 | 0.4% | 1% | Combiner box/industrial equipment | ||
ME2-25 | 12.5A | 25A | +5V | 80kHz | -40~+85 | 0.4% | 1% | Combiner box/industrial equipment | ||
ME2-40 | 20A | 40A | +5V | 80kHz | -40~+85 | 0.4% | 1% | Combiner box/industrial equipment |
Series | Model | Package style | Rated current [A] |
Maximum range [A] |
Supply voltage (V) |
Frequency bandwidth | Operating temperature [℃] |
linearity (25℃) |
accuracy% (25℃) |
Application scenario |

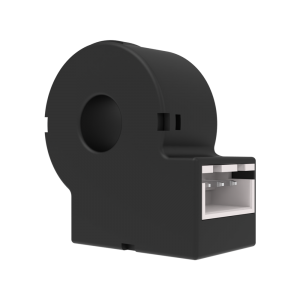

---|---|---|---|---|---|---|---|---|---|---|
CSM Series | CSM500 | 500A | 530A | 8~16V | 100Hz | -40~+85 | 0.2% | 0.5% | BMS、BDU、PDU、Energy storage high pressure box | |
CSM1500 | 1500A | 1700A | 8~16V | 100Hz | -40~+85 | 0.1% | 0.5% | BMS、BDU、PDU、Energy storage high pressure box |
