• SWITCHING RESIDUAL CURRENT SENSOR

    The RCMU101SM/SN series residual current sensor is based on Magtron iFluxgate® magnetic flux gate technology, and the core processing chip adopts an independent research and development SoC integration scheme, which integrates self-test function and logic judgment.The highly integrated module design has an ultra-small installation volume and board area, which is very convenient to use and install.The product is used in European standard/American standard/new national standard car charger (IC-CPD) and AC charging pile residual current protection.

    Product certification:
    CE cruus-小 ROHS-小 REACH-小 TUV TUV2 德凯 SGS

    • Product Advantage

      Chip self-developed

      High reliability

      Rapid response

      Easy to install

      Adapt to IC-CPD/charging pile leakage current detection

    • Product Features

      Modularity

      Integrated self-test function

      Single power supply

      Voltage signal output

      Provide various forms of installation solutions

  • Typical Application

    • ICCPD

      IC-CPD

    • volta

      AC charging pile

Series Model Package style Certification/Standard I△n rms
[mA]
Overcurrent capability
(A)
Application scenario Applicable power segment

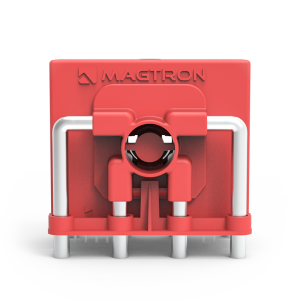

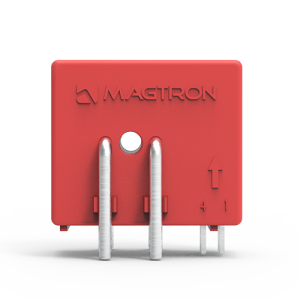

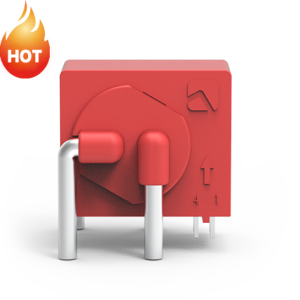

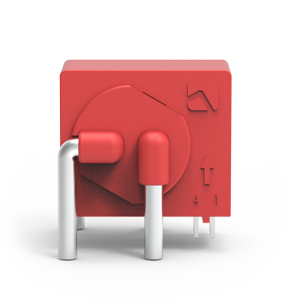

SM Series RCMU101SM8-6EI-AK RCMU101SM8-6EI-AK CE 6mA DC/30mA rms 40A Charging mode two/mode three Single phase 7kW

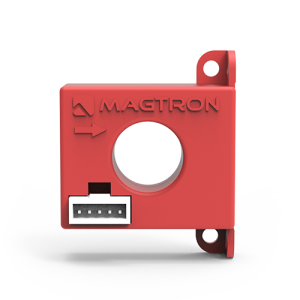

RCMU101SM7-EI-7WK RCMU101SM7-EI-7WK / 6mA DC/30mA rms Customize Charging mode three Single phase 7kW

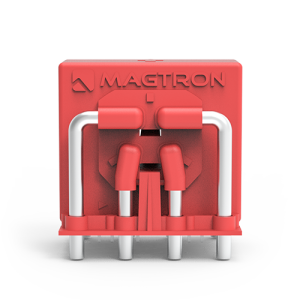

RCMU101SM1-2EI-K RCMU101SM1-2EI-K CE 6mA DC/30mA rms 20A Charging mode two/mode three Single phase 3.3kW
RCMU101SM3-6EI-K RCMU101SM3-6EI-K CE 6mA DC/30mA rms 42A Charging mode two/mode three Single phase 7kW
RCMU101SM3-6EI-UD RCMU101SM3-6EI-UD CE/UL CCID20/6mA DC 42A American standard charging mode Level 1/2 American standard 0~9.6kW
Series Model Package style Certification/Standard I△n rms
[mA]
Overcurrent capability
(A)
Application scenario Applicable power segment

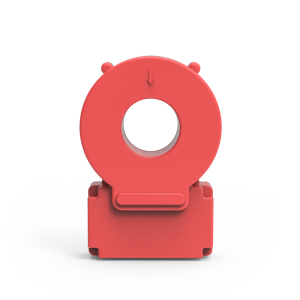

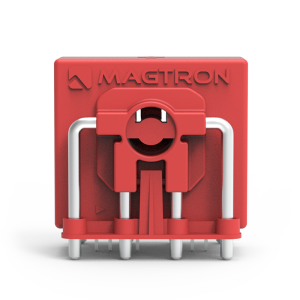

SN Series/SN-E Series RCMU101SN-E-4MD-D1 RCMU101SN-E-4MD-D1 CE 6mA DC Customize Charging mode two/mode three Three-phase 11/22kW

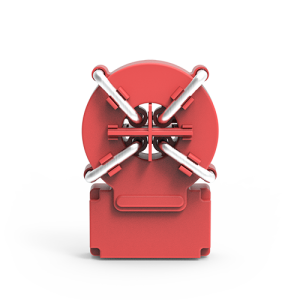

RCMU101SN-E-5SUD-D1 RCMU101SN-E-5SUD-D1 CE/UL CCID20/6mA DC Customize American standard charging mode Level 1/2 American standard 0~19.2kW

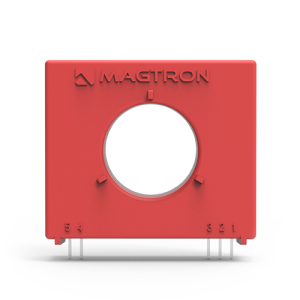

RCMU101SN-4P4E-7LUD RCMU101SN-4P4E-7LUD CE/UL CCID20/6mA DC 40/80 American standard charging mode Level 1/2 American standard 0~19.2kW
RCMU101SN-E-7LUD RCMU101SN-E-7LUD CE/UL CCID20/6mA DC Customize American standard charging mode Level 1/2 American standard 0~9.6kW

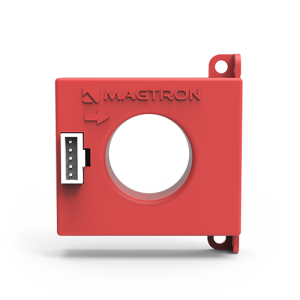

RCMU101SN-4P4E-4SK RCMU101SN-4P4E-4SK CE 6mA DC/30mA rms 32A Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-4P4E-6MK RCMU101SN-4P4E-6MK CE 6mA DC/30mA rms 32A Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-4P4E-6MU RCMU101SN-4P4E-6MU CE 20mA rms 32A Charging mode two/mode three 美标桩
RCMU101SN-4P4E-6SK RCMU101SN-4P4E-6SK CE 6mA DC/30mA rms 32A Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-E-7LK RCMU101SN-E-7LK CE 6mA DC/30mA rms Customize Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-4P4E-7LK5 RCMU101SN-4P4E-7LK5 CE 6mA DC/30mA rms/20mA rms 32A Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-4P6E-6MD RCMU101SN-4P6E-6MD CE 6mA DC 42A Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-4P6E-6MK RCMU101SN-4P6E-6MK CE 6mA DC/30mA rms 42A Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-4P6E-6MUD RCMU101SN-4P6E-6MUD CE/UL CCID20/6mA DC 40/80 American standard charging mode Level 1/2 American standard 0~19.2kW
RCMU101SN-4P10E-6SK RCMU101SN-4P10E-6SK CE 6mA DC/30mA rms 80A Charging mode two/mode three Three-phase pile
RCMU101SN-E-4DK-D1 RCMU101SN-E-4DK-D1 CE 6mA DC/30mA rms Customize Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-E-4MK-D1 RCMU101SN-E-4MK-D1 CE 6mA DC Customize Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-E-4SD-D1 RCMU101SN-E-4SD-D1 CE 6mA DC Customize Charging mode two/mode three Three-phase 11/22kW
RCMU101SN-E-6SK RCMU101SN-E-6SK CE 6mA DC/30mA rms Customize Charging mode two/mode three Three phase 22kW
