Residual Current Sensors With Analog Output
ANALOG SIGNAL OUTPUT TYPE SENSORS

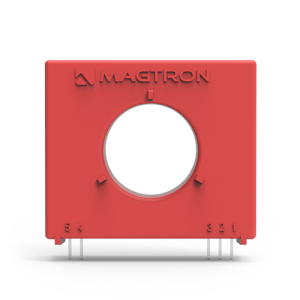

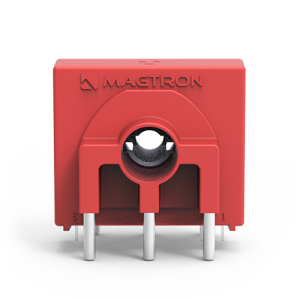

RCMU101SM/SN series residual current sensor is based on Magtron iFluxgate® magnetic flux gate technology, suitable for AC and DC, pulse and any irregular residual current measurement under isolation conditions, the primary side and the secondary side are completely insulated during the measurement.
Product Advantage
Chip self-developed
High precision
High reliability
Low zero drift, low temperature drift
Rapid response
Easy to install
Full power adaptation
Product Features
Modularity
Integrated self-test function
Single power supply
Voltage signal output
PCB assembly
Typical Application
Photovoltaic inverter
IC-CPD
Charging pile
| Series | Model | Package style | Certification/Standard | Rated current [mA] |
Maximum current [mA] |
Overcurrent capability (A) |
Operating temperature | accuracy% (25℃) |
Applicable power segment |

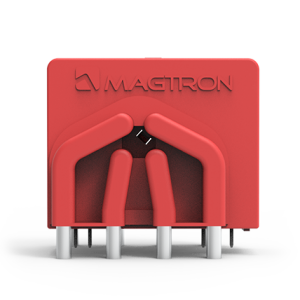

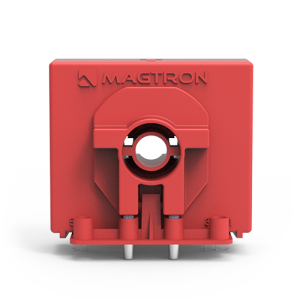

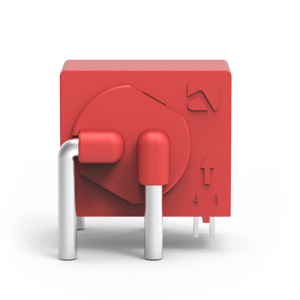

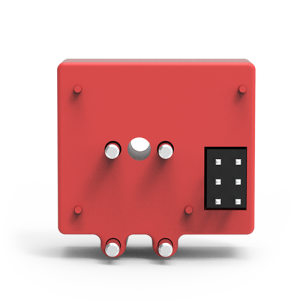

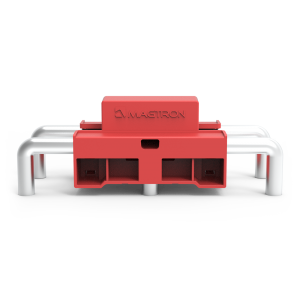

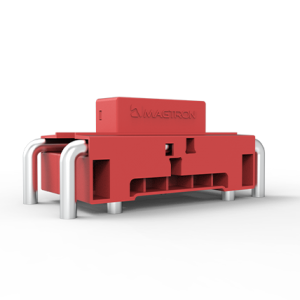

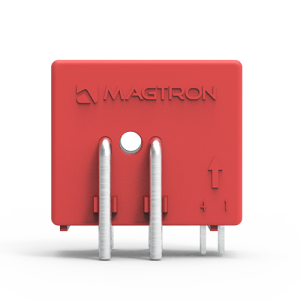

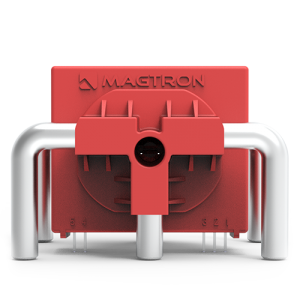

|---|---|---|---|---|---|---|---|---|---|
| SM Series | RCMU101SM1-2AI |  |
CE/UL | 300mA | 500mA | 20A | -40℃~105℃ | 2 | 0-4kW |
| RCMU101SM2-AI |  |
CE/UL | 300mA | 500mA | Customize | -40℃~105℃ | 2 | 0-4kW | |
| SCDU101SM3-6FI-TH |  |
CE/UL | 300mA | 500mA | 42A | -40℃~105℃ | 2 | 0-10kW | |
| RCMU101SM3-6AI | |
CE/UL | 300mA | 500mA | 42A | -40℃~105℃ | 2 | 0-10kW | |
| RCMU101SM3-6FI |  |
CE/UL | 510mA | 850mA | 42A | -40℃~105℃ | 2 | 0-10kW | |
| RCMU101SM4-2AI |  |
CE/UL | 300mA | 500mA | 20A | -40℃~105℃ | 2 | 0-4kW |
| Series | Model | Package style | Certification/Standard | Rated current [mA] |
Maximum current [mA] |
Overcurrent capability (A) |
Operating temperature | accuracy% (25℃) |
Applicable power segment |

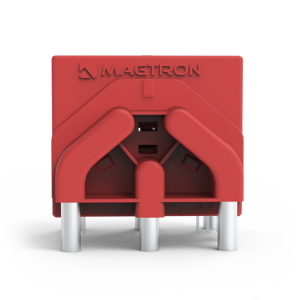

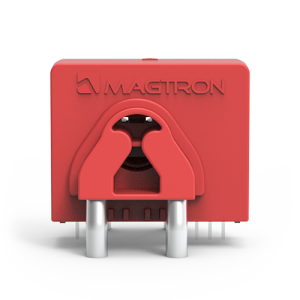

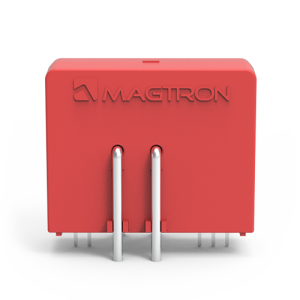

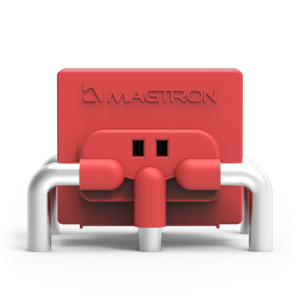

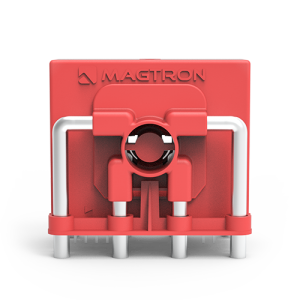

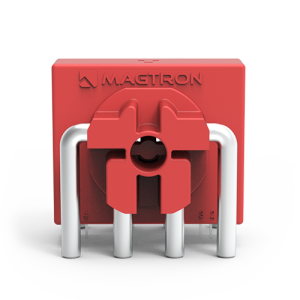

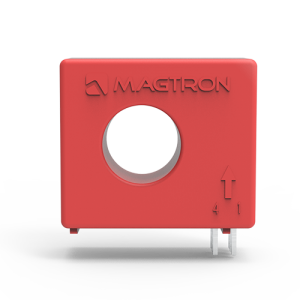

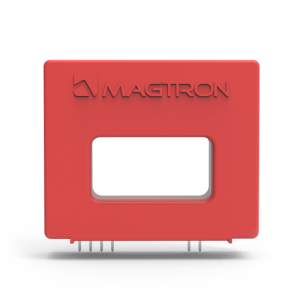

|---|---|---|---|---|---|---|---|---|---|
| SN Series | RCMU101SN-2P12C-5NB |  |
CE/UL | 1020mA | 1700mA | 70A | -40℃~105℃ | 2 | 0-15kW |
| RCMU101SN-2P2A-5N |  |
CE/UL | 300mA | 500mA | 20A | -40℃~105℃ | 2 | 0-4kW | |
| RCMU101SN-2P12A-5N |  |
CE/UL | 300mA | 500mA | 70A | -40℃~105℃ | 2 | 0-15kW | |
| RCMU101SN-2P4A-5S |  |
CE/UL | 300mA | 500mA | 32A | -40℃~105℃ | 2 | 0-7kW | |
| RCMU101SN-3P6A-5S |  |
CE/UL | 300mA | 500mA | 42A | -40℃~105℃ | 2 | 0-36kW | |
| RCMU101SN-3P6C-5S |  |
CE/UL | 1020mA | 1700mA | 42A | -40℃~105℃ | 2 | 0-36kW | |
| RCMU101SN-3P28A-5S |  |
CE/UL | 300mA | 500mA | 120A | -40℃~105℃ | 2 | 0-150kW | |
| RCMU101SN-3P28C-5S |  |
CE/UL | 1020mA | 1700mA | 120A | -40℃~105℃ | 2 | 0-150kW | |
| RCMU101SN-4P4A-5S |  |
CE/UL | 300mA | 500mA | 32A | -40℃~105℃ | 2 | 0-20kW | |
| RCMU101SN-4P5C-5N |  |
CE/UL | 1020mA | 1700mA | 40A | -40℃~105℃ | 2 | 0-25kW | |
| RCMU101SN-4P4C-5S | |
CE/UL | 1020mA | 1700mA | 32A | -40℃~105℃ | 2 | 0-20kW | |
| RCMU101SN-4P5C-5N |  |
CE/UL | 1020mA | 1700mA | 40A | -40℃~105℃ | 2 | 0-25kW | |
| RCMU101SN-4P10A-5S |  |
CE/UL | 300mA | 500mA | 60A | -40℃~105℃ | 2 | 0-60kW | |
| RCMU101SN-3P16A-5S |  |
CE/UL | 300mA | 500mA | 80A | -40℃~105℃ | 2 | 30-50kW | |
| RCMU101SN-4P16A-5S |  |
CE/UL | 300mA | 500mA | 80A | -40℃~105℃ | 2 | 0-80kW | |
| RCMU101SN-4P16C-5S |  |
CE/UL | 1020mA | 1700mA | 80A | -40℃~105℃ | 2 | 0-80kW | |
| RCMU101SN-A-5S |  |
CE/UL | 300mA | 500mA | Customize | -40℃~105℃ | 2 | / | |
| RCMU101SN-C-5S |  |
CE/UL | 1020mA | 1700mA | Customize | -40℃~105℃ | 2 | / | |
| RCMU101SN-D-5S |  |
CE/UL | 1500mA | 2000mA | Customize | -40℃~105℃ | 2 | / | |
| RCMU101SN-G-6C |  |
CE/UL | 3000mA | 5000mA | Customize | -40℃~105℃ | 1.5 | / | |
| RCMU101SN-4P28G-6C |  |
CE/UL | 3000mA | 5000mA | 150A | -40℃~105℃ | 1.5 | 0-150kW | |
| RCMU101SN-3P28G-6C |  |
CE/UL | 3000mA | 5000mA | 150A | -40℃~105℃ | 1.5 | 0-150kW | |
| RCMU101SN-3P28H-6C |  |
CE/UL | 2000mA | 3000mA | 150A | -40℃~105℃ | 1.5 | 0-150kW | |
| RCMU101SN-3P50G-6C |  |
CE/UL | 3000mA | 5000mA | 300A | -40℃~105℃ | 1.5 | 0-300kW |
